74408943047
Manufacturer:
Wurth Electronics
Mfr.Part #:
74408943047
Datasheet:
Description:

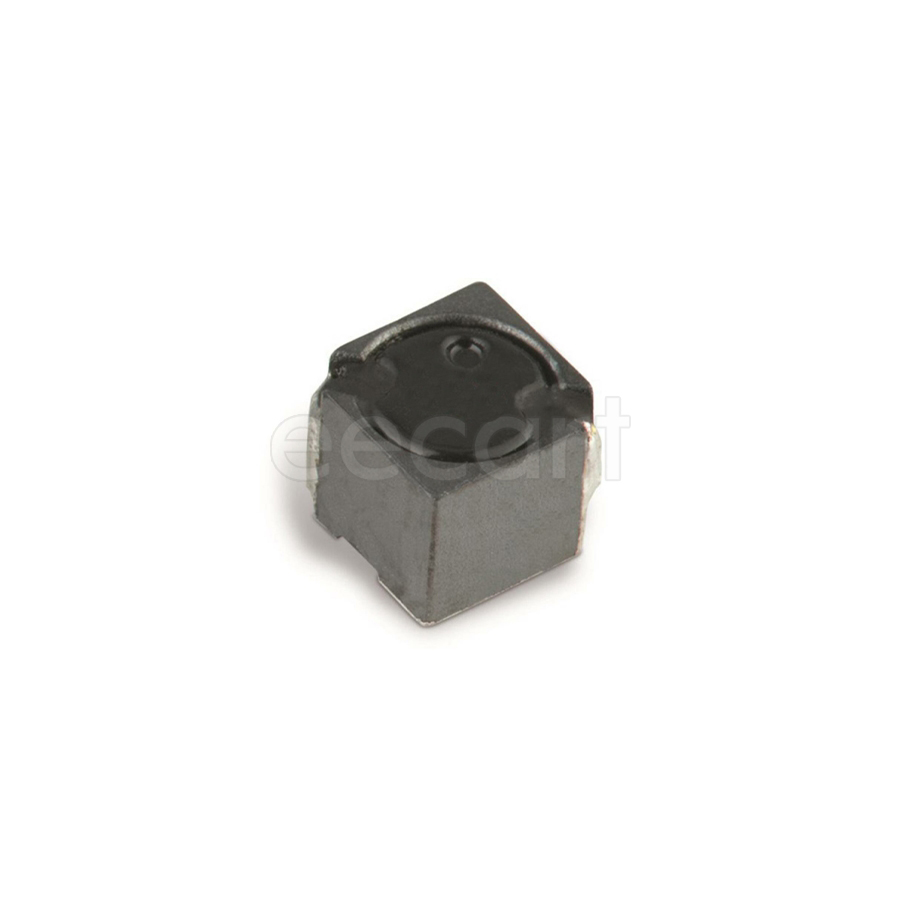

Fixed Inductors 4.80mmL×4.80mmW×3.80mmH SMD/SMT 4.7 µH 20 % 2.2 A 52 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.1 mm |
| Length | 4.8 mm |
| Width | 4.8 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 3.8 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Self Resonant Frequency | 44 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 52 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| inductance tolerance | 20 % |
| Saturation Current | 3.2 A |
| Current Rating | 2.2 A |
Stock: 2347
Distributors
pcbx
pcbxUnit Price$1.39512
Ext.Price$1.39512
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.39512 | $1.39512 |
| 10 | $1.37152 | $13.71520 |
| 25 | $1.34563 | $33.64075 |
| 50 | $1.32023 | $66.01150 |
| 100 | $1.27016 | $127.01600 |
| 300 | $1.07743 | $323.22900 |
| 500 | $0.91395 | $456.97500 |
